Features:
Compact structure, good stability, high precision, low mounting platform, safe and easy operation.
Application fields:
Compact structure, good stability, high precision, low mounting platform, safe and easy operation.Application fields: Platform scales, axle load scales, vehicle inspection lines, truck scales, hopper scales, tank scales, etc.

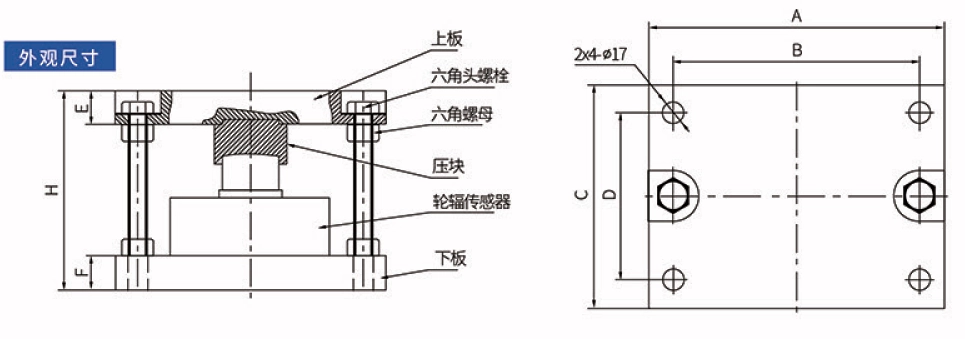

Measurements:
Capacity:
| Range | A | B | C | D | E | F | H |
|---|---|---|---|---|---|---|---|
| 1-5 | 200 | 170 | 150 | 120 | 24 | 19 | 110 |
| 10-20 | 200 | 160 | 160 | 125 | 25 | 25 | 145 |
| 30 | 240 | 200 | 180 | 135 | 30 | 30 | 175 |
| 40-60 | 240 | 200 | 180 | 135 | 30 | 30 | 175 |
| 80 | 330 | 270 | 240 | 170 | 35 | 35 | 235 |
| 100 | 330 | 270 | 240 | 170 | 35 | 35 | 210 |
Refer to Wiring Diagram:
Parameter:
| Parameter | Unit | Value | Parameter | Unit | Value |
|---|---|---|---|---|---|
| Rated Capacity | T | 0-60 | Material | – | 42CrMoA/Stainless Steel |
| Output Sensitivity | mV/V | 2.0±0.002 | Impedance | Ω | 700/1400 |
| Zero Balance | %F.S. | ±2 | Insulation Resistance | MΩ/100V DC | ≥5000 |
| Non-Linearity | %F.S. | 0.05 | Operating Voltage | V | 5-15 |
| Hysteresis | %F.S. | 0.03 | Operating Temperature Range | °C | -20-80 |
| Repeatability | %F.S. | 0.03 | Safe Overload | %R.C. | 150 |
| Creep (30min) | %F.S. | 0.03 | Ultimate Overload | %R.C. | 200 |
| Temp. Coeff. of Output | %F.S./10°C | 0.03 | Cable Specification | m | Φ5*5m |
| Temp. Coeff. of Zero | %F.S./10°C | 0.05 | Cable Ultimate Tension | N | 98 |
| Response Frequency | Hz | 1k | TEDS | – | Optional |
