Features:
High stability and stable anti-interference signal performance.
Application fields:
Reaction kettles, batching tanks, hoppers, silos, cement mixing plants, etc.

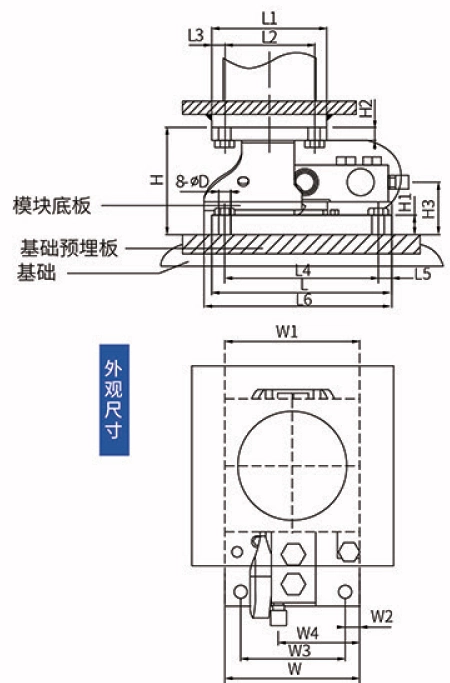

Measurements:
Capacity:
| Capacity | D | H | H1 | H2 | H3 | H4 | L | L1 | L2 | L3 | L4 | L5 | L6 | W | W1 | W2 | W3 | W4 | A |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 300kg/500kg/1T | 11.2 | 105.2 | 19.1 | 12.7 | 50.9 / 51.3 | 15 | 177.9 | 114.4 | 89.0 | 12.7 | 152.4 | 12.7 | 185.6 | 114.4 | 114.4 | 12.7 | 89.0 | 66.6 / 69.7 | M10 |
| 3T | 11.2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 5T | 17.5 | 136.6 | 25.4 | 19.1 | 70.3 | 20 | 235.0 | 152.4 | 101.6 | 25.4 | 184.2 | 25.4 | – | 152.4 | 152.4 | 25.4 | 101.6 | 91.7 | M16 |
Refer to Wiring Diagram:
Parameter:
| Technical Specifications | |||||
|---|---|---|---|---|---|
| Rated Capacity | T | 0-60 | Material | – | 42CrMoA/Stainless Steel |
| Output Sensitivity | mV/V | 2.0±0.002 | Impedance | Ω | 700/1400 |
| Zero Balance | %F.S. | ±2 | Insulation Resistance | MΩ/100V DC | ≥5000 |
| Non-Linearity | %F.S. | 0.05 | Operating Voltage | V | 5-15 |
| Hysteresis | %F.S. | 0.03 | Operating Temperature Range | °C | -20~80 |
| Repeatability | %F.S. | 0.03 | Safe Overload | %R.C. | 150 |
| Creep (30min) | %F.S. | 0.03 | Ultimate Overload | %R.C. | 200 |
| Temp. Coeff. of Output | %F.S./10°C | 0.03 | Cable Specification | m | Φ5*5m |
| Temp. Coeff. of Zero | %F.S./10°C | 0.05 | Cable Ultimate Tension | N | 98 |
| Response Frequency | Hz | 1k | TEDS | – | Optional |
