Features:
Bidirectional tension and compression load bearing, favorable output symmetry, high precision and strong resistance to lateral force.
Application fields:
Applied to high-precision measurement of various weighing equipment such as electronic weighing instruments, tension testing machines and security equipment testing devices.
Capacity

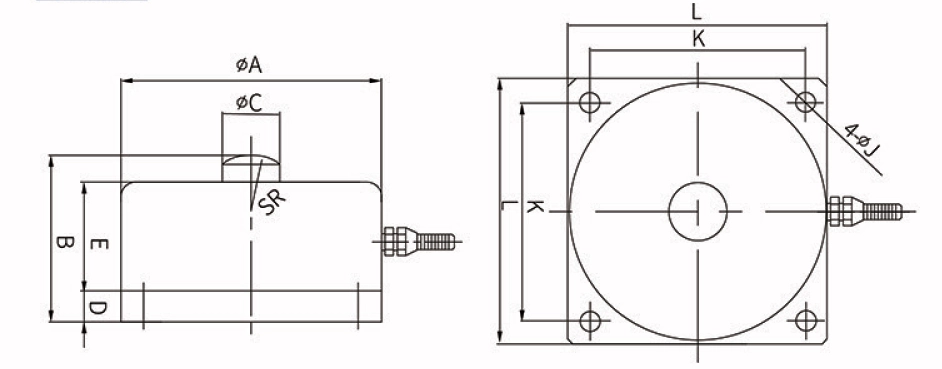

| Capacity | ΦA | B | ΦC | D | E | K | L | SR | 4-ΦJ |
|---|---|---|---|---|---|---|---|---|---|
| 0.2-0.7T | 72 | 41 | 16 | 8 | 25 | 62 | 72 | 13 | 4.6 |
| 1-8T | 88 | 53 | 20 | 10 | 34 | 75 | 88 | 20 | 5.6 |
| 10-15T | 114 | 70 | 25 | 13 | 46 | 95 | 114 | 25 | 6.5 |
| 20-50T | 145 | 91 | 32 | 16 | 60 | 120 | 145 | 30 | 11 |
| Technical Specification | Unit | Value | Technical Specification | Unit | Value |
|---|---|---|---|---|---|
| Rated Capacity | T | 0-50T | Material | – | 42CrMoA |
| Output Sensitivity | mV/V | 2.0±0.05 | Impedance | Ω | 700/1400 |
| Zero Balance | %F.S. | ±1 | Insulation Resistance | MΩ/100V DC | ≥5000 |
| Non-linearity | %F.S. | 0.05 | Excitation Voltage | V | 5-15 |
| Hysteresis | %F.S. | 0.05 | Operating Temperature Range | °C | -20~80 |
| Repeatability | %F.S. | 0.03 | Safe Overload | %R.C. | 150 |
| Creep (30min) | %F.S. | 0.03 | Ultimate Overload | %R.C. | 200 |
| Temp. Coefficient of Sensitivity | %F.S./10°C | 0.03 | Cable Specification | m | Φ5*3m/5m |
| Temp. Coefficient of Zero | %F.S./10°C | 0.03 | Cable Pull Strength | N | 98 |
| Response Frequency | Hz | 1k | TEDS | – | Optional |
