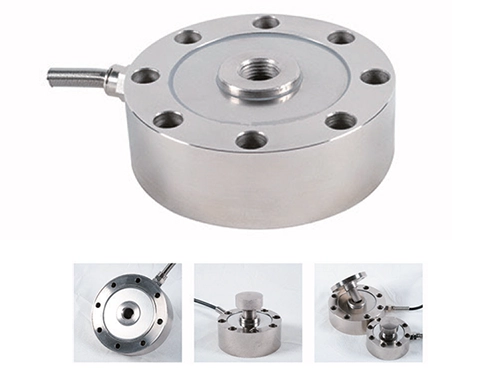

Features:
Bidirectional tension and compression load bearing, favorable output symmetry, high precision and strong resistance to lateral force.
Application fields:
Applied to high-precision measurement of various weighing equipment such as electronic weighing instruments, tension testing machines and security equipment testing devices.
Capacity

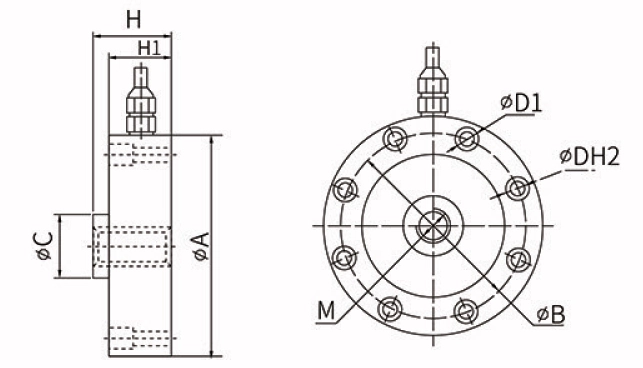

| Capacity | ΦA | ΦB | ΦC | M | H | H1 | H2 | D | D1 |
|---|---|---|---|---|---|---|---|---|---|
| 50~2000kg | 72 | 59 | 18 | M12x1.75 | 24 | / | / | 8-Φ10 | 8-Φ6 |
| 50~2000kg | 74 | 63 | 24 | M16x1.5 | 34 | 30 | 7.2 | 8-Φ9 | 8-Φ6 |
| 1~5t | 105 | 89 | 32 | M16x1.5 | 37 | 34 | 7.2 | 8-Φ11 | 8-Φ7 |
| 10~20t | 120.6 | 101.8 | 39 | M32x1.5 | 53.5 | 41 | 10.5 | 8-Φ14 | 8-Φ9 |
| 30t | 141 | 116.8 | 50.4 | M40x1.5 | 57.2 | 50.8 | 11 | 8-Φ18 | 8-Φ11 |
| 40-80t | 208 | 174 | 95 | M64x3 | 70 | / | 15 | 16-Φ20 | 16-Φ13 |
| 100-200t | 280 | 230 | 136 | M76x3 | 90 | / | 20 | 16-Φ26 | 16-Φ17 |
| 300-400t | 360 | 300 | 190 | M100x3 | 110 | / | 20 | 20-Φ40 | 20-Φ25 |
| 500-600t | 420 | 370 | 266 | M130x4 | 140 | / | 30 | 20-Φ42 | 20-Φ28 |

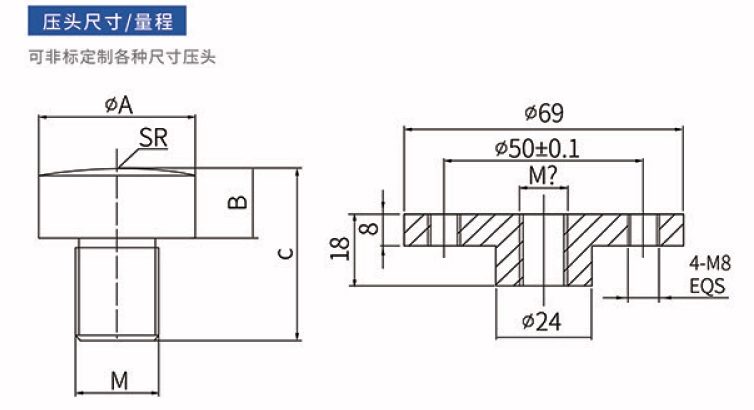

| Range | ΦA | B | C | M | SR |
|---|---|---|---|---|---|
| 100~1000kg | 31 | 13 | 28 | M16x1.5 | 80 |
| 10-20T | 39 | 20 | 50 | M32x1.5 | 100 |
| 30T | 50 | 32 | 62 | M40x1.5 | 150 |
| 50T | 88 | 30 | 60 | M64x3 | / |
| 100-200T | 100 | 40 | 100 | M76x3 | / |
| 300-400T | 124 | 50 | 130 | M100x3 | / |
| Parameter | Unit | Specification | Parameter | Unit | Specification |
|---|---|---|---|---|---|
| Rated Load | kN | 30-2000 | Operating Temperature | °C | -20~+65 |
| Comprehensive Accuracy | ≤%F·S | 0.05~0.1 | Input Impedance | Ω | 380±10Ω/750±15 |
| Sensitivity | mV/V | 2.0 | Output Impedance | Ω | 350±3/750±5 |
| Creep | ≤%F·S/30min | ±0.05 | Insulation Resistance | MΩ | >5000 |
| Zero Balance | ≤%F·S | ±1 | Safe Overload | ≤%F.S | 150 |
| Zero Temp. Effect | ≤%F·S/10°C | ±0.05 | Bridge Voltage | V | 10 |
| Output Temp. Effect | ≤%F·S/10°C | ±0.05 | Material | Alloy Steel or Stainless Steel |
