Features:
Bidirectional load bearing under tension and compression, compact structure, small size and fast dynamic response.
Application fields:
Electronic weighing instruments, medical equipment, automotive testing and other control devices.

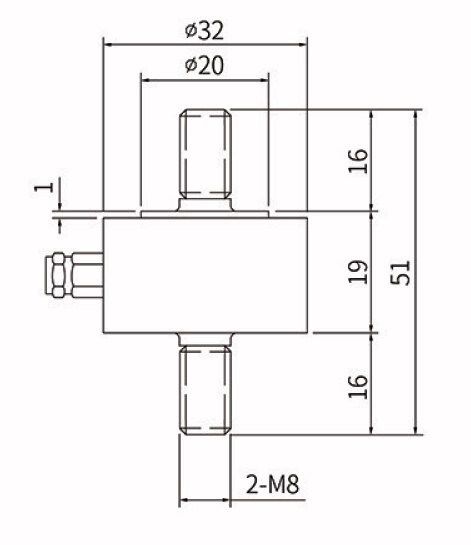

Capacity
| Capacity Range | Thread Size (M) | Weight | Material |
|---|---|---|---|
| 5kg ~ 50kg | M5 | – | – |
| 60kg ~ 100kg | M6 | 0.1 kg | Stainless Steel |
| 200kg ~ 300kg | M8 | – | – |
| Parameter | Unit | Specification | Parameter | Unit | Specification |
|---|---|---|---|---|---|
| Accuracy Class | – | D1 | Zero Balance | %F·S | ±1 |
| Output Sensitivity | mV/V | 1.0~1.5±10% | Input Impedance | Ω | 750±20 |
| Max Verification Scale Interval | nmax | 1000 | Output Impedance | Ω | 350±2 |
| Min Verification Scale Interval | vmin | Emax/3000 | Insulation Resistance | MΩ (≥5000 @ 50VDC) | ≥5000 |
| Creep | %F·S / 30min | ±0.05 | Recommended Excitation Voltage | V | 0~10 (DC) |
| Temp. Coeff. of Output | %F·S / 10°C | ±0.1 | Safe Overload | %F·S | 150 |
| Temp. Coeff. of Zero | %F·S / 10°C | ±0.1 | Ultimate Overload | %F·S | 200 |
| Temp. Compensation Range | °C | -20~+60 | Protection Class | – | IP65 |
| Operating Temp. Range | °C | -35~+70 |
