Features:
Compact size, low mounting height, fast dynamic response, excellent long-term stability
Application fields:
Various electronic weighing and electronic force measuring equipment.
Capacity

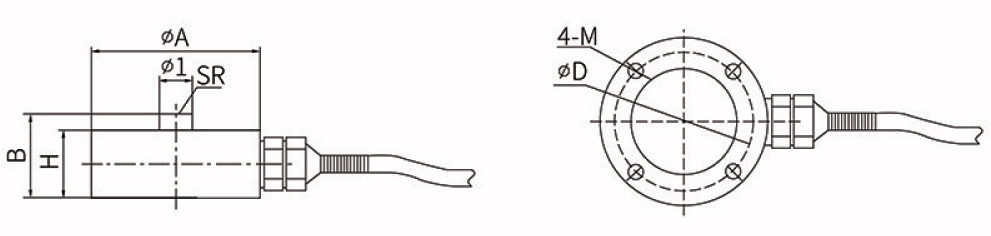

| Capacity | ΦA | B | H | Φ1 | ΦD | 4-M | SR |
|---|---|---|---|---|---|---|---|
| 50kg~5T | 51 | 25 | 20 | 10 | 42 | M5 | SR50 |
| 6~15T | 88 | 47 | 42 | 18 | 72 | M6 | SR150 |
| Parameter | Unit | Specification | Parameter | Unit | Specification |
|---|---|---|---|---|---|
| Rated Capacity | T | 0-50T | Material | – | 42CrMoA |
| Sensitivity | mV/V | 2.0±0.05 | Impedance | Ω | 700 |
| Zero Balance | %F.S. | ±1 | Insulation Resistance | MΩ/100V DC | ≥5000 |
| Non-linearity | %F.S. | 0.05 | Excitation Voltage | V | 5-15 |
| Hysteresis | %F.S. | 0.05 | Operating Temp. Range | °C | -20~80 |
| Repeatability | %F.S. | 0.03 | Safe Overload | %R.C. | 150 |
| Creep (30min) | %F.S. | 0.03 | Ultimate Overload | %R.C. | 200 |
| Temp. Coeff. of Sensitivity | %F.S./10°C | 0.03 | Cable Spec | m | Φ5*2m |
| Temp. Coeff. of Zero | %F.S./10°C | 0.03 | Cable Pull Force Limit | N | 98 |
| Response Frequency | Hz | 1k | TEDS | – | Optional |
