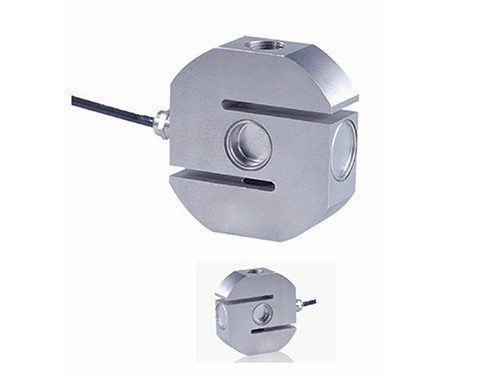

Features:
Bidirectional tension and compression bearing, high precision and high reliability.
Application fields:
Various automatic control equipment and weighing inspection equipment.

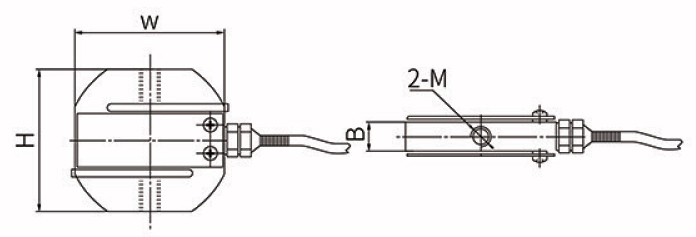

Capacity
| Capacity | M | W | H | B |
|---|---|---|---|---|
| 0-30kg | M8*1.25 | 62 | 58 | 12 |
| 50-200kg | M12*1.75 | 70 | 64 | 20 |
| 300-500kg | M12*1.75 | 70 | 64 | 20 |
| 1T | M16*2 | 64 | 64 | 25 |
| 2-7T | M20*2.5 | 92 | 92 | 32 |
| Technical Specifications | ||
|---|---|---|
| Parameter | Unit | Value |
| Rated Capacity | T | 0.2-1 / 2-7 |
| Output Sensitivity | mV/N | 2.0 ± 10% |
| Zero Balance | %F.S. | ±1 |
| Non-linearity | %F.S. | 0.03 |
| Hysteresis | %F.S. | 0.03 |
| Repeatability | %F.S. | 0.03 |
| Creep (30 min) | %F.S. | 0.03 |
| Temp. Effect on Sensitivity | %F.S./10°C | 0.03 |
| Temp. Effect on Zero | %F.S./10°C | 0.05 |
| Response Frequency | Hz | 1k |
| Material | 42CrMoA | |
| Impedance | Ω | 350 |
| Insulation Resistance | MΩ/100V DC | ≥5000 |
| Excitation Voltage | V | 5-15 |
| Operating Temperature Range | °C | -20 ~ 80 |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 200 |
| Cable Specification | m | 0.2-1T: Φ52m 2-7T: Φ55m |
| Cable Pull Limit | N | 98 |
| TEDS | Optional |
