Features:
Capable of bidirectional tension and compression bearing, with strong resistance to eccentric load and overload.
Application fields:
Various electronic weighing instruments, automatic control equipment and testing equipment.

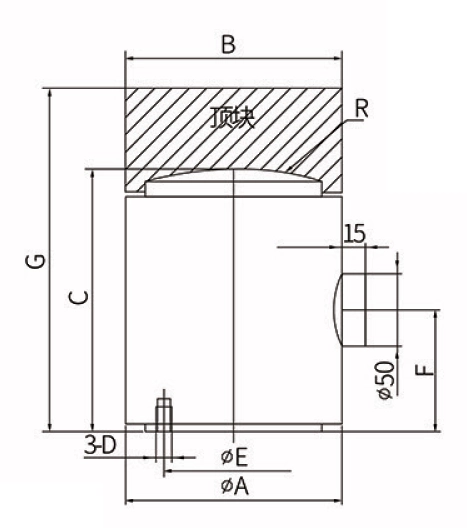

Measurements:
Capacity:
| Capacity Range | 2-20 | 30-50 | 60-100 | 200 | 300 | 500 | 700-1000t |
|---|---|---|---|---|---|---|---|
| Φa | 54 | 78 | 98 | 128 | 154 | 196 | 246 |
| ΦB | 54 | 78 | 98 | 128 | 154 | 196 | 246 |
| C | 65 | 100 | 110 | 140 | 170 | 220 | 282 |
| D | M4 | M6 | M6 | M6 | M8 | M10 | M16 |
| E | 35 | 55 | 75 | 100 | 120 | 150 | 190 |
| R | 80 | 100 | 120 | 200 | 300 | 400 | 500 |
| G | 85 | 125 | 140 | 180 | 215 | 275 | 352 |
| F | 30 | 47 | 55 | 70 | 85 | 110 | 132 |
Refer to Wiring Diagram:
Parameter:
| Parameter | Unit | Specification | Parameter | Unit | Specification |
|---|---|---|---|---|---|
| Rated Capacity | T | 0-1000 | Material | – | 42CrMoA |
| Output Sensitivity | mV/V | 2.0/3.0±10% | Impedance | Ω | 700 |
| Zero Balance | %F.S. | ±2 | Insulation Resistance | MΩ/100V DC | ≥5000 |
| Non-Linearity | %F.S. | 0.3 | Excitation Voltage | V | 5-15 |
| Hysteresis | %F.S. | 0.1 | Operating Temp Range | °C | -20~80 |
| Repeatability | %F.S. | 0.1 | Safe Overload | %R.C. | 150 |
| Creep (30min) | %F.S. | 0.05 | Ultimate Overload | %R.C. | 200 |
| Temp Coeff of Output | %F.S./10°C | 0.05 | Cable Spec | m | Φ5*3m |
| Temp Coeff of Zero | %F.S./10°C | 0.05 | Cable Ultimate Pull | N | 98 |
| Response Frequency | Hz | 1k | TEDS | – | Optional |
