Features:
Capable of bidirectional tension and compression bearing, with strong resistance to eccentric load and overload.
Application fields:
Various electronic weighing instruments, automatic control equipment and testing equipment.

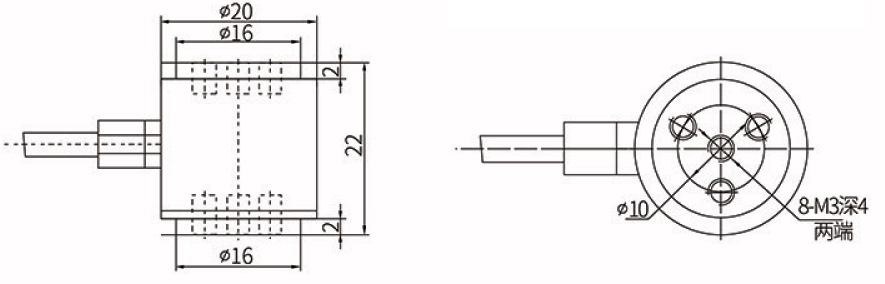

Measurements:
Capacity:
| Capacity | 5 | 10 | 20 | 30 | 50 | 100 |
Refer to Wiring Diagram:
Parameter:
| Parameter | Unit | Specification | Parameter | Unit | Specification |
|---|---|---|---|---|---|
| Rated Capacity | Kg | 0-500 | Material | – | Stainless Steel |
| Output Sensitivity | mV/V | 2.0±10% | Impedance | Ω | 350/700 |
| Zero Balance | %F.S. | ±2 | Insulation Resistance | MΩ/100V DC | ≥5000 |
| Non-Linearity | %F.S. | 0.5 | Excitation Voltage | V | 10-15 |
| Hysteresis | %F.S. | 0.1 | Operating Temp Range | °C | -20~80 |
| Repeatability | %F.S. | 0.1 | Safe Overload | %R.C. | 120 |
| Creep (30min) | %F.S. | 0.1 | Ultimate Overload | %R.C. | 150 |
| Temp Coeff of Output | %F.S./10°C | 0.1 | Cable Spec | m | 3*2m |
| Temp Coeff of Zero | %F.S./10°C | 0.1 | Cable Ultimate Pull | N | 98 |
| Response Frequency | Hz | 1k | TEDS | – | Optional |
