Features:
Capable of bidirectional tension and compression bearing, with strong resistance to eccentric load and overload.
Application fields:
Various electronic weighing instruments, automatic control equipment and testing equipment.

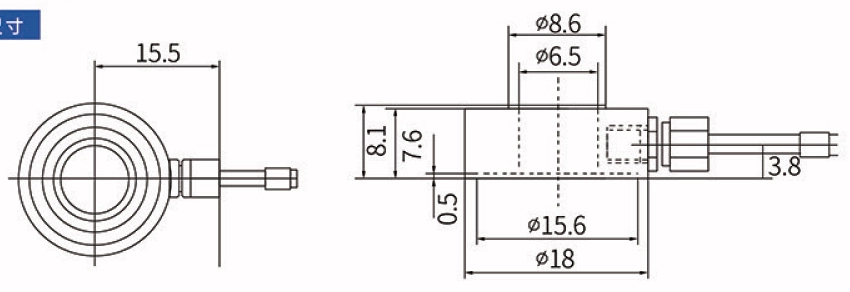

Measurements:
Capacity:
| Capacity | 5 | 10 | 20 | 30 | 50 | 100 |
Refer to Wiring Diagram:
Parameter:
| Capacity | 0-100kg | Material | Stainless Steel |
| Rated Output | 2.0±10% mV/N | Impedance | 350Ω |
| Zero Balance | ±2%F.S | Insulation | ≥5000MΩ/100VDC |
| Non-Linearity | 0.5%F.S | Operating Voltage | 5-10V |
| Hysteresis | 0.1%F.S | Operating Temp Range | -20~80°C |
| Repeatability | 0.1%F.S. | Safe Overload | 120% |
| Creep (30min) | 0.1%F.S | Maximum Overload | 150% |
| Temp Effect on Output | 0.1%F.S./10°C | Cable Specifications | φ2x2m |
| Temp Effect on Zero | 0.1%F.S./10°C | Cable Ultimate Pull | 10kg |
| Response Frequency | 10kHz | TEDS | Optional |
